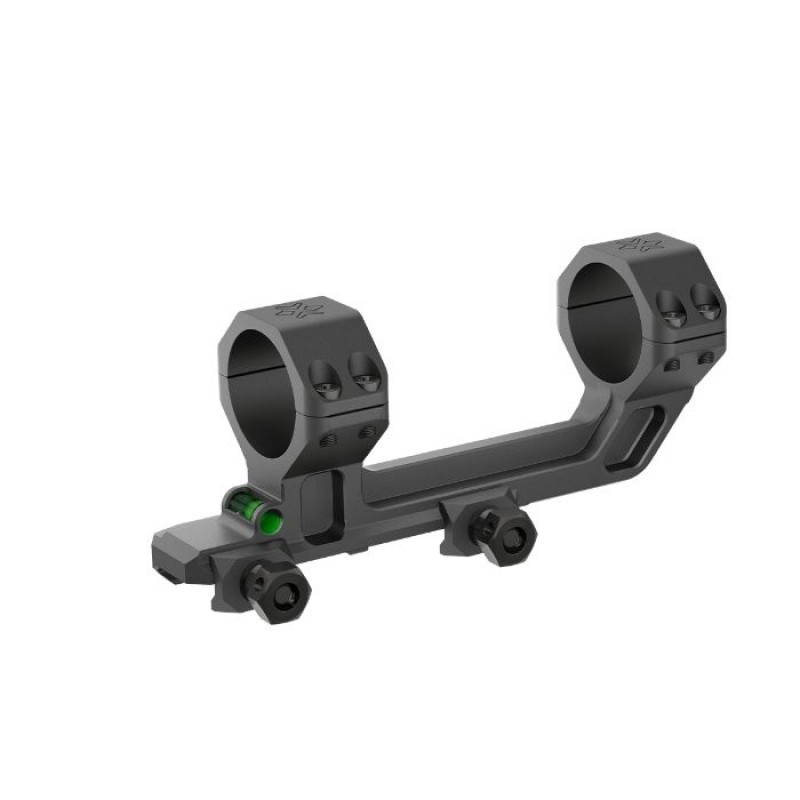

Vector Optics 30mm One Piece Picatinny Cantilever ACD Mount

Brand: VECTOR OPTICS

Product Code: SCACD-23

Dimensions: L: 0 x W: 0 x H: 0

Availability: In Stock

* Qty:

38mm 1.5in Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined.

• Four Screws per Ring, 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar.

• With Air Bubble Level Indicating the Level Condition.

SCACD-23 30mm One Piece Picatinny Mount Dimensions

Ring Diameter: 30mm
Overall Length: 138mm / 5.4in
Overall Height: 40mm / 1.6in
Mount Length: 120mm / 4.7in
Ring Width: 45mm / 1.8in
Central Height: 38mm / 1.5in, bottom to center
Gap Length: 73mm / 2.9in
Material: 6061-T6 aluminum alloy
Weight: 152g / 5.36oz
Mount: 1913 Picatinny
Finish: Black matte
Screws per ring: 4
High-durability aluminum alloy in black matte
Do not use over 18 inch / pounds of torque on the scope rings' screws
Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail
Cantilever scope mount with anti cant device buble lever designed for hard and rigorous use.
With T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts.
