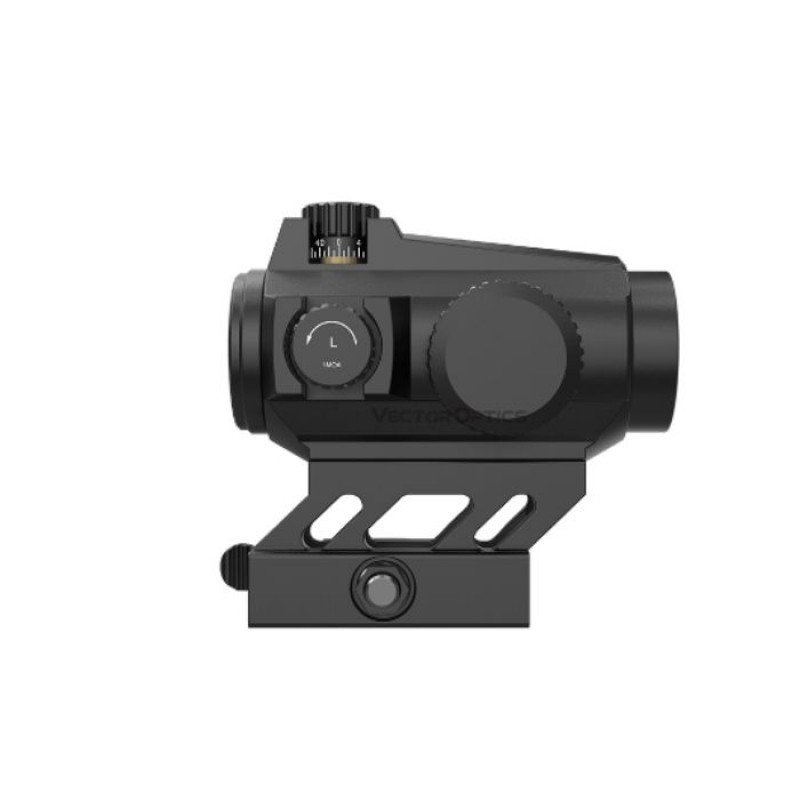

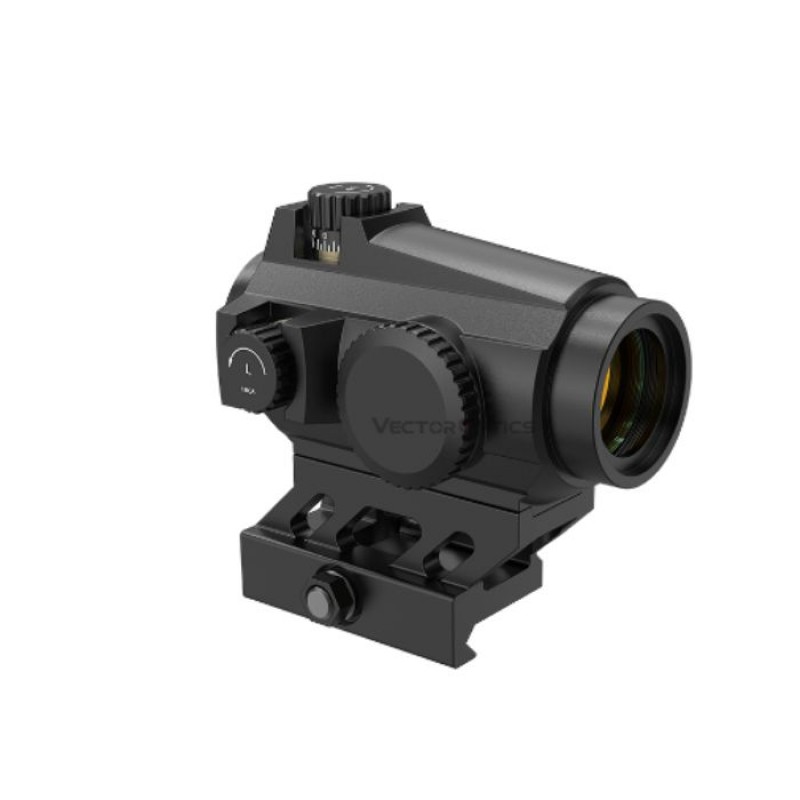

Vector Optics Maverick-II Plus 1x22 DBR Double-Reticle Red Dot Sight

Brand: VECTOR OPTICS

Product Code: SCRD-PD12

Dimensions: L: 0 x W: 0 x H: 0

Availability: In Stock

* Qty:

• 3MOA Dot Size with 9 Levels Red Dot Intensity, 8 Daylight & 1 NV.

• Double-Reticle, Digital Switch.

• Complete User Control with Motion Sensor (30 Minutes Auto Shut-off).

• 38mm 1.5in From Bottom to Red Dot Sight Center. Lower 1/3 Co-witness.

• 1MOA Direct Finger Adjustment with Audible Click.

• Come with Cantilever QD Riser & Low Picatinny Mount w/ Safety Button and Flip-up Cap

SCRD-PD12 Maverick-II Plus 1x22 DBR Diagram 1 (1)

SCRD-PD12 Maverick-II Plus 1x22 DBR Diagram 2

SCRD-PD12 Maverick-II Plus 1x22 DBR feature 3

SCRD-PD12 Maverick-II Plus 1x22 DBR Dimensions

Magnification: N/A
Objective Lens: 22mm
Eye Relief: Free
Optics Coating: Fully Multi coated
Overall Length: 84mm / 3.3in
QD Base Length: 48mm / 1.9in
Low Mount Length: 48mm / 1.5in
Width: 51mm / 2.0in
Height: 38mm(1.5in) from bottom to center
Weight: 214g / 7.5oz
Click Value: 1MOA
Parallax: 1 MOA
Dot Intensity: 9 levels
Dot Size: 3MOA
Elevation Range: ＞60 MOA
Windage Range: ＞60 MOA
Mounting: Picatinny
Battery Style: CR2032
Double reticle system, standard dot or crosshair & circle & dot.
Excellent for moving target and fast shooting.
Shock proof, IPX4 water resistance and fog proof.
High quality aluminum alloy 6061 in durable black matte finish.
With QD mount knob lock feature.
Free Accessories: Cantilever QD Picatinny mount, low Picatinny mount, flip-up cap, hex keys and cleaning cloth etc.
